دايرة صوت يونيفرسال للشاشات CA-8610

دايرة صوت يونيفرسال للشاشات CA-8610

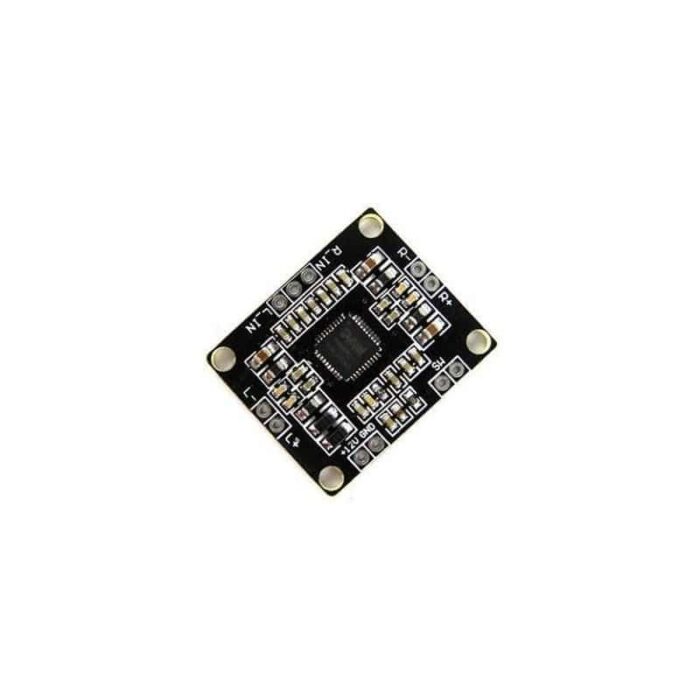

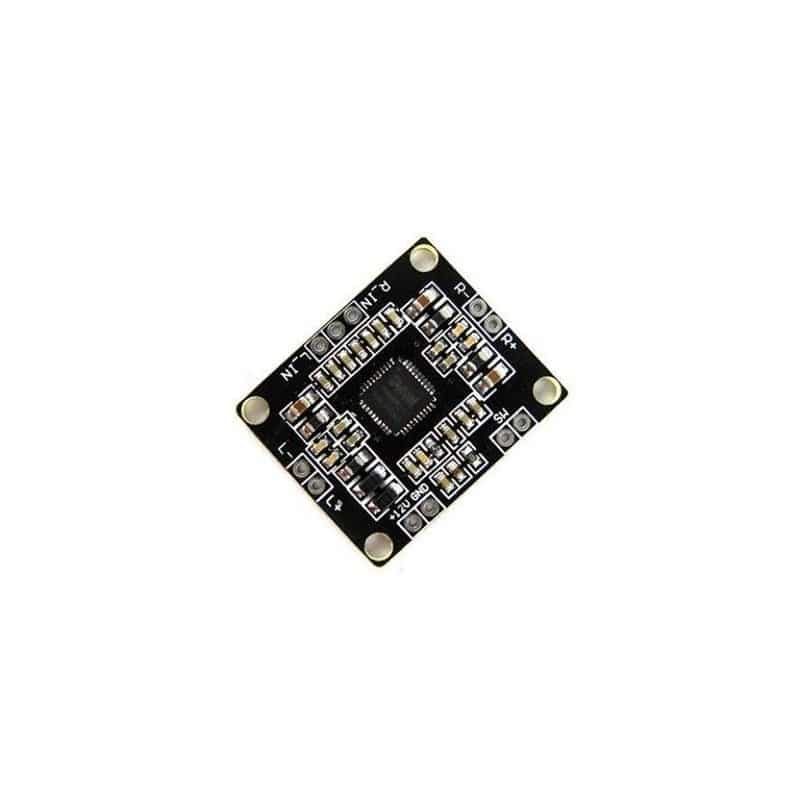

This power amplifier board using the official standard circuit design, and the chip selection is used in the united states imported Longding micro-D power amplifier chip

12V power supply can output 10W+10W power

The chip without heat sink, but also with overheating, overcurrent protection

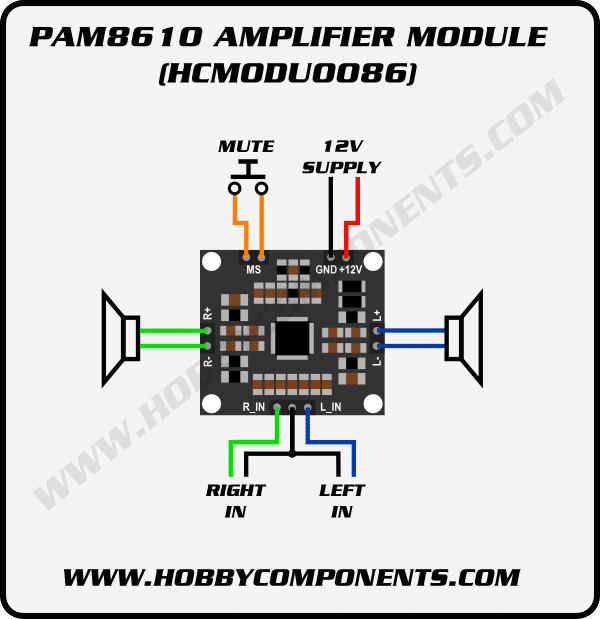

This board has a switch function, the switch shorted, will close the amplifier

Do not short-circuit the audio output to each other or shorted to ground
